Module Connect

The Module Connect is an innovative connector concept designed specifically for connecting electrical cables, fibre optic cables and pneumatic tubing. The modular connector system features a space-saving, flat housing and is ideal for applications where multiple cables need to be connected in a confined space. The quick connector can be concealed without additional coding and offers a custom configurable interface. Experience the flexibility and reliability of our modular connector.

產品數量: 56

模組化接頭4路電纜進線

無需在有限的空間設置多個插入/斷開點位,只有 一個 可單獨配置的接口
  • 包含5個接口或10個模組化插入式接頭的套件
67,683 TWD/件 以上
至產品頁面

模組化接頭3路進線

無需在有限的空間設置多個插入/斷開點位,只有 一個 可單獨配置的接口
  • 包含5個接口或10個模組化插入式接頭的套件
67,683 TWD/件 以上
至產品頁面

模組化接頭緊固零件

  • 用於牆壁和地板安裝以及外殼連接的安裝支架
  • 實現靈活裝配
  • 10件裝,含  10個固定零件
3,188 TWD/件 以上
至產品頁面

模組化接頭雙鎖式

  • 連接並固定  Module Connect外殼
  • 兩個固定扣
  • 一個螺栓
  • 一個螺母
2,624 TWD/件 以上
至產品頁面

模組化接頭單鎖

  • 連接 並固定    Module Connect外殼
  • 一個固定扣
  • 一個螺栓
  • 一個螺母
1,562 TWD/件 以上
至產品頁面

Module Connect strain relief 09140008034 / 09140008033

Available strain relief for the Module Connect.
請洽易格斯
至產品頁面

Han EE® Quick Lock module 09140122632 / 09140122732

Number of contacts: 12, silver-plated
Electrical data: 10A / 250V
Connection type: Quick Lock connection
Conductor cross-section: 0.25 ... 1.5mm²
請洽易格斯
至產品頁面

Han DD® module 09140123102 / 09140123002

Number of contacts: 12
Electrical data: 10 A / 250V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D
請洽易格斯
至產品頁面

Han® DDD module 09140173001 / 09140173101

Number of contacts: 17
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D
請洽易格斯
至產品頁面

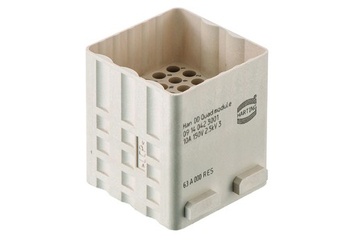

Han DD® Quad module 09140423001 / 09140423101

Number of contacts: 42
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D
請洽易格斯
至產品頁面

Han® High Density module 09140253001 / 09140253101

Number of contacts: 25
Electrical data: 4 A / 50 V
Conductor cross-section: 0.08 ... 0.52mm²
Connection type: Crimp connection, D-Sub
請洽易格斯
至產品頁面

5 A - D-Sub - crimp contacts pin

5A - D-sub - crimp contacts pin (gold-plated or HMC gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

5 A - D-Sub - crimp contacts bushing

5A - D-sub - crimp contacts socket (gold-plated or HMC gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面
