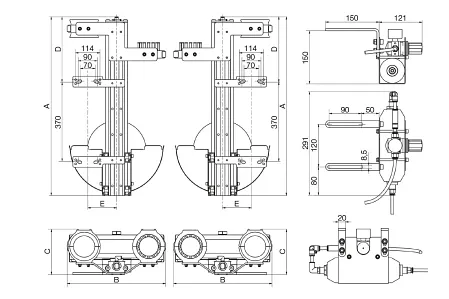

| 產品代碼 | 最大伸縮距離 /mm | 尺寸A /mm | 尺寸B /mm | 尺寸C /mm | 尺寸D /mm | 尺寸E /mm | ||
|---|---|---|---|---|---|---|---|---|
| TR.RSP.60.L | 792 | 396 | 177 | 277 | 135 | 123,812 TWD | ||
| TR.RSP.65.L | 792 | 396 | 177 | 277 | 135 | 138,730 TWD | ||
| TR.RSP.70.L | 792 | 396 | 177 | 277 | 135 | 124,612 TWD | ||
| TR.RSP.85.L | 836 | 461 | 213 | 306 | 135 | 192,109 TWD | ||
| TR.RSP.100.L | 845 | 467 | 213 | 306 | 135 | 201,407 TWD | ||
| TR.RSP.60.R | 792 | 396 | 177 | 277 | 135 | 123,812 TWD | ||
| TR.RSP.65.R | 792 | 396 | 177 | 277 | 135 | 138,730 TWD | ||
| TR.RSP.70.R | 792 | 396 | 177 | 277 | 135 | 124,612 TWD | ||
| TR.RSP.85.R | 836 | 461 | 213 | 306 | 135 | 192,109 TWD | ||
| TR.RSP.100.R | 845 | 467 | 213 | 306 | 135 | 201,407 TWD | ||
| TR.RSP.125.R | 1043 | 570 | 245 | 405 | 135 | 311,186 TWD | ||
| TR.RSP.125.L | 1043 | 570 | 245 | 405 | 135 | 311,186 TWD |
| 寬 度 | 零件號 TRC 封閉式設計 | 拖鏈標準長度 [毫米] | ||||
|---|---|---|---|---|---|---|
| 60. | TRC.RSP.60.087. LLL.0 | 500 | 1000 | 1500 | 2000 |  查詢 |
| 70. | TRC.RSP.70.110. LLL.0 | 500 | 1000 | 1500 | 2000 | 查詢 |
| 85. | TRC.RSP.85.135. LLL.0 | 500 | 1000 | 1500 | 2000 | 查詢 |
| 100. | TRC.RSP.100.145.LLL.0 | 500 | 1000 | 1500 | 2000 | 查詢 |
| 125. | TRC.RSP.125.182.LLL.0 | 500 | 1000 | 1500 | 2000 | 查詢 |
| 寬 度 | 產品代碼 TRE“方便型”設計 | 拖鏈標準長度 [毫米] | ||||
| 60. | TRE.RSP.60.087. LLL.0.B | 500 | 1000 | 1500 | 2000 | 查詢 |
| 70. | TRE.RSP.70.110. LLL.0.B | 500 | 1000 | 1500 | 2000 | 查詢 |
| 85. | TRE.RSP.85.135. LLL.0.B | 500 | 1000 | 1500 | 2000 | 查詢 |
| 100. | TRE.RSP.100.145.LLL.0.B | 500 | 1000 | 1500 | 2000 | 查詢 |
| 125. | TRE.RSP.125.182.LLL.0.B | 500 | 1000 | 1500 | 2000 | 查詢 |
| 尺寸 Ø | R [mm] | 系統內的 拖鏈長度[毫米] | 拖鏈的鏈節數 | 拖鏈總長度 [毫米] |
|---|---|---|---|---|
| 30. | - | - | - | - |
| 40. | - | - | - | - |
| 50. | - | - | - | - |
| 60. | 087 | 1489 | 73 | LLL + 1489 |
| 65 | - | - | - | - |
| 70. | 110 | 1484 | 58 | LLL + 1484 |
| 85. | 135 | 1622 | 53 | LLL + 1622 |
| 85. (R 240) | - | - | - | - |
| 100. | 145 | 1656 | 48 | LLL + 1656 |
| 125. | 182 | 1940 | 44 | LLL + 1962 |
