igus® energy supply solutions for crane manufacturers and users

The main advantages of using igus® products:

Space-saving design

Higher clearance tolerances

No additional drives required

No additional drives or steel structures required

No control system required

energy chain system movement synchronised with trolley

Quick and easy assembly (guidefast guide trough)

Quick and easy installation and/or replacement of cables

High-speed data transmission using fibre optic cables (FOC)

All media types guided together in one system: energy, data and fluids

Easy maintenance reduces your downtime

No wearing parts

Spare parts guaranteed for ten years and more

TÜV tested

Safely guide control devices

Economical energy supply for crane girders and indoor cranes

control devices

Directly mounted on crane girder. Compact design. Usable for all kinds of control devices for a wide range of functions. Free choice of cables, number of cores and cross section. chainflex® cables with smallest bend radii of down to 5 x d available. With a 36-month warranty*. Easy to move due to maintenance-free xiros® polymer ball bearings in the guide carriage.

guidefast

Quickly installed as modular solution: The guidefast guide trough is fixed to the side of the crane girder. This avoids having to weld brackets onto crane girders during assembly. Assembly times are kept to a minimum as the guide trough only has to be hooked into the holder and then secured with the trough brackets. The small number of components and the fixed trough width also contribute easy assembly.

micro flizz®

System for the safe guidance of energy, data and air

With the micro flizz® system from igus®, you can implement long travels, with the smallest e-chains® without downtime. This compact, low-noise and cost-effective system enables the secure guidance of energy, data and air.

The benefits at a glance:

Maintenance-free alternative to busbar system

Lateral "wings" support in an extended position and pivot in the radius

Fast and easy installation with pre-harnessed chainflex® cables

Plastic spring dampens the rolling noise of the e-chain® in the flizz® channel: reduces noise emission

micro flizz® on indoor crane


Basic flizz®

The complete solution for long travels

With the basic flizz® system from igus® you are protected against adverse environmental conditions. The cost-effective, fully enclosed complete solution is designed for travel distances of up to 100 m.

The benefits at a glance:

Glide bar integrated in the profile enables safe guidance: no damage to the cables

Quick and easy assembly, as the system can be opened along the outer radius

Easy retrofitting of cables or hoses possible at any time

Standardised, modular design

basic flizz® on indoor crane

Crane girder

igus® energy chain systems preassembled on the crane girder



Whether single girder or double girder cranes, roller or box girder section cranes, as well as overhead travelling, ceiling or boom cranes, igus® offers the ideal energy supply solution for all requirements, complete with flexible chainflex® cables, as an alternative to busbar systems, festoon systems or motor drums. The space-saving igus® e-chain system® made of high-performance plastics for trolley drive can be mounted either directly on the crane girder or on top of it easily and safely.
By using an igus® energy chain system, the cable loop station can be dispensed with. The entire girder length can be used for the trolley travel. The end of the girder is also the end of the energy chain system. All areas of the hall are accessible to the crane. No cables can get tangled. In the energy chain, all cables are safely guided with a defined minimum bend radius.

guidefast e-chain system®

guidefast e-chain system® mounted on the side of the crane girder


e-chain system®

e-chain system® mounted on the crane girder


e-chain system®

End of the e-chain system® at the end of the crane girder

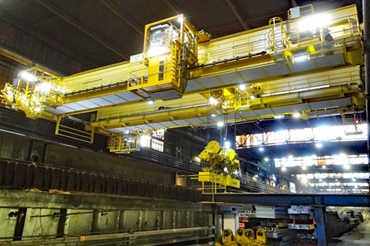

igus® offers a suitable energy supply solution also for crane tracks. igus® e-chains® provide great benefits for long travels. Rolling instead of gliding, glide rol e-chains® substantially reduced the drive power needed to move the energy chain. Travels of up to 800 m are possible. We will be happy to design your application free of charge and to work out the most cost-effective igus® solution taking account of your technical and operational safety requirements.

e-chain system® for crane track

e-chain system® for a crane track, wall-mounted


Gliding e-chain system®

Gliding e-chain system® in harsh environments


Aluminium trough for crane track

Long travel with aluminium trough for crane track



News

Product modules for indoor cranes

e-chains®, cables and accessories

E4.1總覽

一個拖鏈系列可用於幾乎任何應用

E4.1總覽

E2/000總覽

兩片式 - E2標準拖鏈

E2/000總覽

E4/4總覽

高穩定性“側面安裝”- 極長行程

E4/4總覽

輪式拖鏈概覽

以滾動代替滑動:適合超長行程的拖鏈

輪式拖鏈概覽

導向槽

當5-12米的拖鏈被用在長行程的應用中時,可使用導向槽。 它們可以使易格斯拖鏈和拖管順暢,低摩擦地運行。

導向槽

去應力元件

去應力系統 - 產品總覽

去應力元件

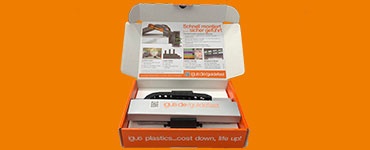

guidefast導槽

側裝式guidefast導槽

guidefast導槽

PPDS的基本 - Just switch off

以推/拉力測量作為安全標準

PPDS的基本 - Just switch off

chainflex®高柔性耐彎曲電線電纜——產品概覽

資訊,選型和線上訂購

chainflex®高柔性耐彎曲電線電纜——產品概覽

FTA浮動移動端

FTA浮動移動端,補償平行誤差

FTA浮動移動端

Innovative products

適合垂直應用的liftband

替代之字形解決方案

適合垂直應用的liftband

Guidelok垂直導向系統,可節省安裝空間

Guidelok slimline “F”超薄型:適用於高速進給機構拖鏈的安全垂直導向

Guidelok垂直導向系統,可節省安裝空間

Micro flizz®概覽

安全引導動力、資料和空氣

Micro flizz®概覽

圓周運動 - 多層結構

高負載,可達900°的圓周運動,使用易格斯循環模組化系統

圓周運動 - 多層結構

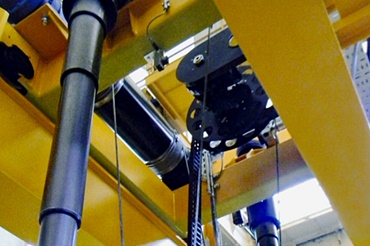

e-spool 電纜捲線器 - 多功能的能量傳輸機構

可自由選擇的電線電纜滾筒- 合適於電線電纜及任何媒介的安全導向

e-spool 電纜捲線器 - 多功能的能量傳輸機構

...Basic flizz®...

Protection against weather and dirt exposure – Cost-effective and fully enclosed complete solution, e.g. waste water treatment plants.

...Basic flizz®...

igus® services

igus® online tools

能量傳輸保護拖鏈,方型護管快速選擇
QuickChain.13 -
e-chain® selection for unsupported applications of up to 13 m

自動填充 QuickChain填充
QuickFill -
interior separation
configurator for energy chains

您能量傳輸保護拖鏈,方型護管使用 壽命預估——QuickLife
QuickLife -
service life
calculation for e-chains®

e-chain cad
3D-CAD

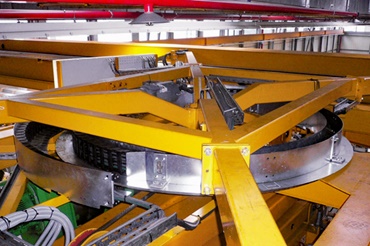

Indoor crane application examples
