Furniture design

This is a four-axle system for electrical parameter adjustments of a stylish screen workspace with drylin® linear modules and other components from this series. The two most important functions are: Height-adjustment of three to six monitors and inclination function of the entire work zone. An adjustment of the overhead-hanging monitors is achieved by a standing mounted drylin linear module, which allows it to move over an area of 400mm. A lying installation allows for the inclination. The lift of the table plate for a vertical adjustment is guided with drylin® floating bearings and electrically ensures via a trapezoidal spindle. The horizontal adjustment of the table plate is realized with drylin® guide rails and driving elements. It allows an individual arrangement of the work zone for each employee.

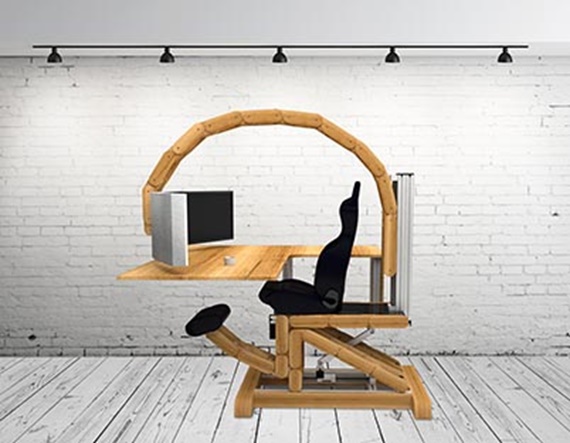

Monitor workstation

StuAtech, Michael Monetti, Linz, Austria
