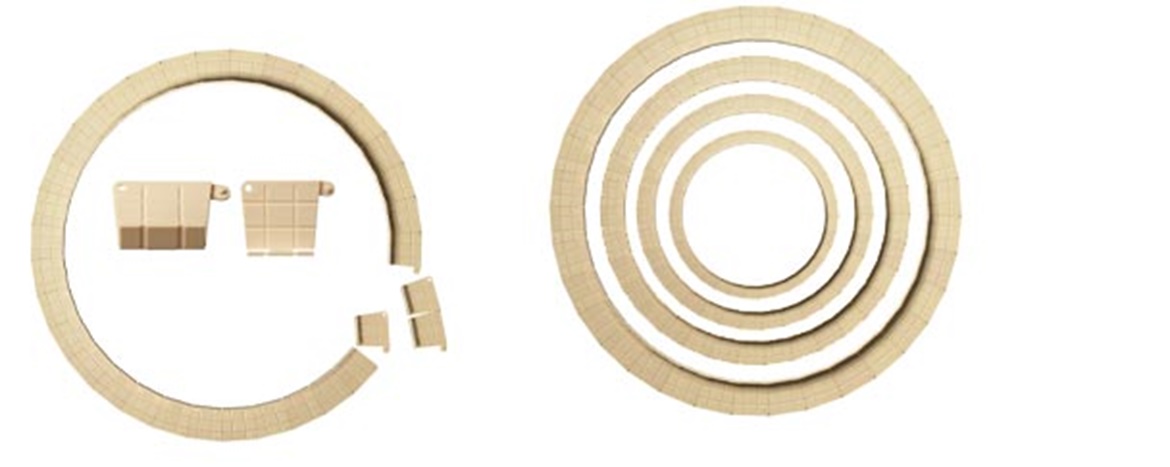

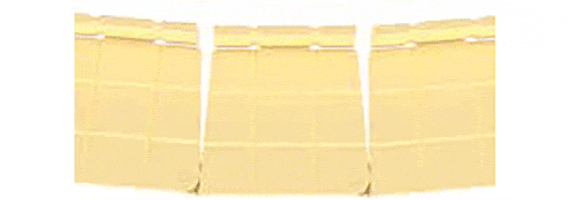

以經驗證的iglidur® J製成的通用滑動元件

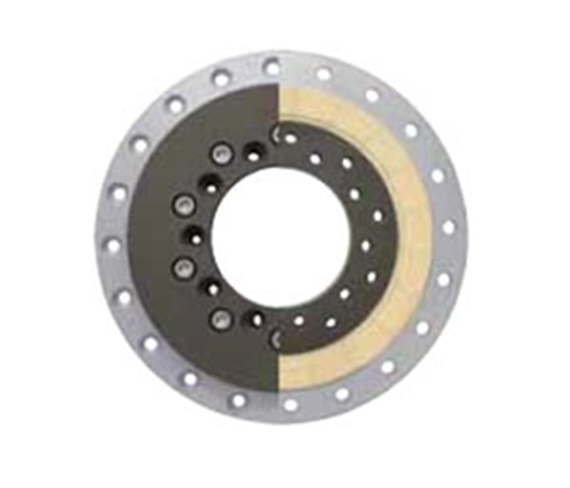

改裝自己直徑在500毫米及更大的轉盤系統
無潤滑
免保養
耐磨損
頑丈
抗腐蝕
綜合特徵 | |
---|---|
密度 | 1,49克/cm3 |
顏色 | 黃色 |
23°C和50%相對濕度下吸水性最大 h. | 重量的.0,3 % |
最大吸水率 | 重量的.1,3 % |
機械性能 [MPa · m/s] | |
---|---|
最大允許靜態表面壓力(+20 °C) | 35 MPa |
邵氏D硬度 | 74 |
物理和热性能 | |
---|---|
連續運行時的最高溫度 | 90°C |
短暫運行時的最高溫度 | 120°C |
工作溫度下限 | –50° |
導電性能 | |
---|---|
表面電阻 | >1012 Ω |
