Module Connect

The Module Connect is an innovative connector concept designed specifically for connecting electrical cables, fibre optic cables and pneumatic tubing. The modular connector system features a space-saving, flat housing and is ideal for applications where multiple cables need to be connected in a confined space. The quick connector can be concealed without additional coding and offers a custom configurable interface. Experience the flexibility and reliability of our modular connector.

產品數量: 48

Han EE® Quick Lock module 09140122632 / 09140122732

Number of contacts: 12, silver-plated
Electrical data: 10A / 250V
Connection type: Quick Lock connection
Conductor cross-section: 0.25 ... 1.5mm²
請洽易格斯
至產品頁面

Han DD® module 09140123102 / 09140123002

Number of contacts: 12
Electrical data: 10 A / 250V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D
請洽易格斯
至產品頁面

Han® DDD module 09140173001 / 09140173101

Number of contacts: 17
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D
請洽易格斯
至產品頁面

Han DD® Quad module 09140423001 / 09140423101

Number of contacts: 42
Electrical data: 10A / 150V
Conductor cross-section: 0.14 ... 2.5mm²
Connection type: Crimp connection, Han ® D
請洽易格斯
至產品頁面

Han® High Density module 09140253001 / 09140253101

Number of contacts: 25
Electrical data: 4 A / 50 V
Conductor cross-section: 0.08 ... 0.52mm²
Connection type: Crimp connection, D-Sub
請洽易格斯
至產品頁面

5 A - D-Sub - crimp contacts pin

5A - D-sub - crimp contacts pin (gold-plated or HMC gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

5 A - D-Sub - crimp contacts bushing

5A - D-sub - crimp contacts socket (gold-plated or HMC gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

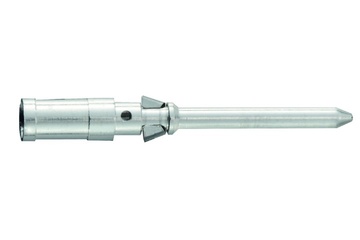

10 A - Han D® - crimp contacts pin

10A - Han D® - crimp contacts pin (silver-plated or gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

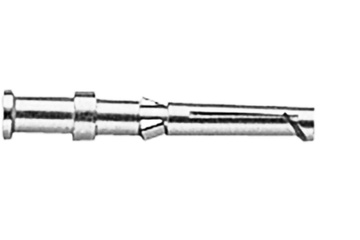

10 A - Han D® - crimp contacts bushing

10A - Han D® - crimp contacts socket (silver-plated or gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

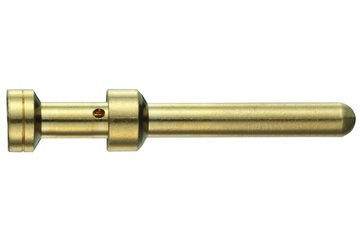

16 A - Han E® - crimp contacts pin

16 A - Han E® - crimp contacts pin (silver-plated or gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

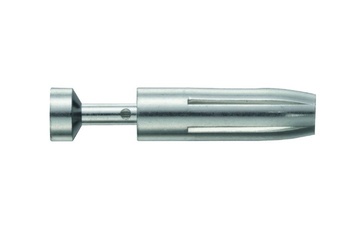

16 A - Han E® - crimp contacts socket

16 A - Han E® - crimp contacts socket (silver-plated or gold-plated) (PU: 100 pieces)
請洽易格斯
至產品頁面

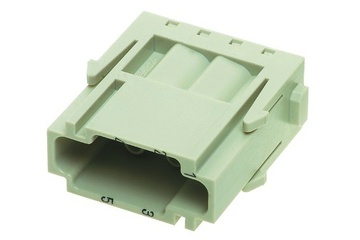

Han E® module 09140063001 / 09140063101

Number of contacts: 6
Electrical data: 16A/500V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
請洽易格斯
至產品頁面

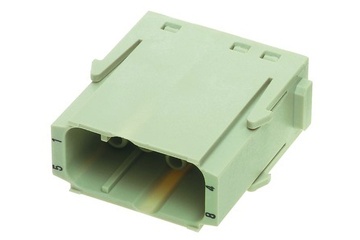

Han EE® module 09140083001 / 09140083101

Number of contacts: 8
Electrical data: 16A/400V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
請洽易格斯
至產品頁面

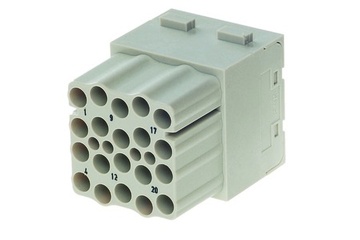

Han EEE® module 09140203001 / 09140203101

Number of contacts: 20
Electrical data: 16A/500V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
請洽易格斯
至產品頁面

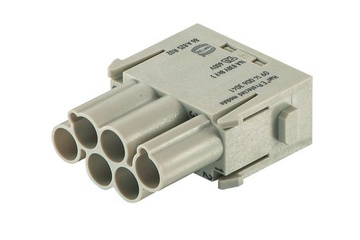

Han E® protected module 09140063041 / 09140063141

Number of contacts: 6
Electrical data: 16A/830V
Conductor cross section: 0.14 ... 4mm²
Connection type: Crimp connection, Han® E
請洽易格斯
至產品頁面
