  1. 主頁
  2. 直線系統
  3. Low profile linear guide system NK-12-27

drylin® N - Low profile linear guide system long NW-04-27

Order no. Weight of rail Max. rail lengths Price / m
  [g/m] [mm]
可24-48小時內出貨(不含假日) NS-01-27 290 3000 1,551 TWD 添加到購物車
台灣無現貨，德國有現貨，通常可在20個工作日內出貨，如有提前到貨會盡快安排出貨。 NS-01-27-UNGEBOHRT 290 3000 1,412 TWD 添加到購物車
可24-48小時內出貨(不含假日) NS-01-27-AR 290 3000 1,861 TWD 添加到購物車
所選零件的更多資訊：
三維CAD 三維CAD
樣品索取 樣品索取
PDF PDF
報價請求 報價請求
我的目錄 我的目錄

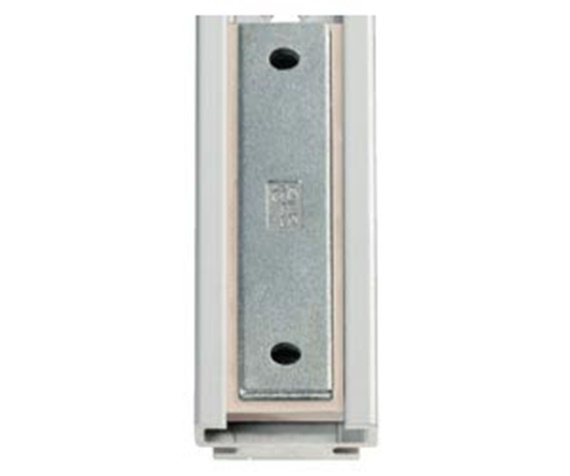

Version 04: Double carriage with through hole

Order no. Weight of carriage
  [g]
台灣無現貨，德國有現貨，通常可在20個工作日內出貨，如有提前到貨會盡快安排出貨。 NW-11-27-80-LLY 25 412 TWD 添加到購物車
可24-48小時內出貨(不含假日) NW-11-27-80-LLZ 25 412 TWD 添加到購物車
可24-48小時內出貨(不含假日) NW-11-27-80-LLYZ 25 412 TWD 添加到購物車
所選零件的更多資訊：
三維CAD 三維CAD
樣品索取 樣品索取
PDF PDF
報價請求 報價請求
我的目錄 我的目錄

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Hint:

Detailed information can be found below in the drawings as well as in the below-mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.
1

no floating bearing

2

Floating bearing in z-direction

3

Floating bearing in y-direction

4

Floating bearing in yz-direction

drylin® NK – complete set

Step 1

Enter the required number of carriages.

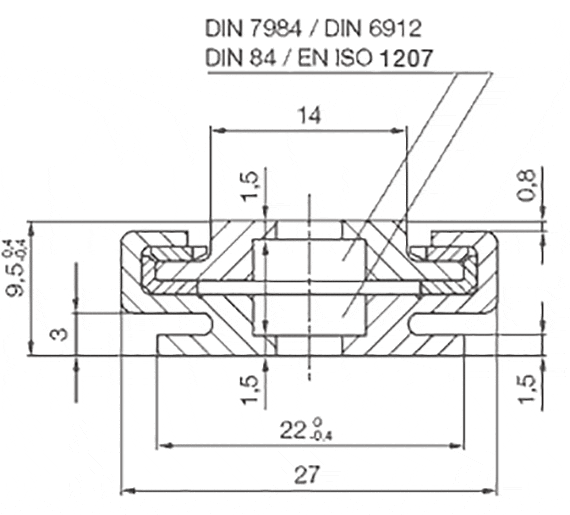

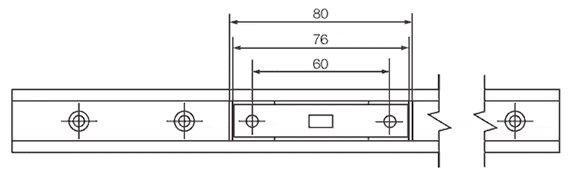

technical drawing
No. of carriages:
Continue
drylin® N - Technical data
drylin® N - Design rules
