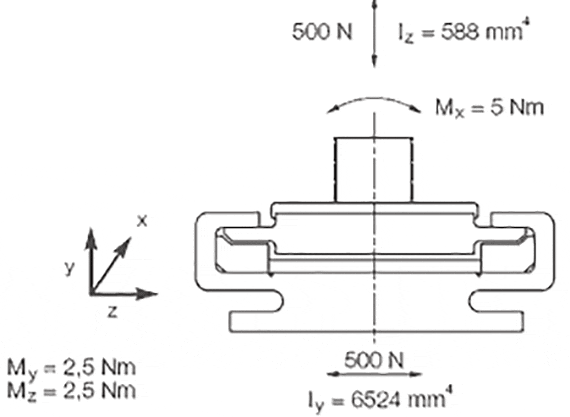

drylin® N carriage for low profile linear guide system with pretension NW-22-27-60P

Order no.	Max. rail lengths	a	C4	A3	C5=C6		h	h1	K1*	ly	lz	Weight of rail	Price / m
	[L max.]				Min.	max.				[mm²]	[mm²]	[g/m]
NS-01-27	3000	27	60	0	20	20/49,5	9	1.1	M4	6524	588	290	1,551 TWD
NS-01-27-UNGEBOHRT	3000	27	0	0	0		9	1.1	0	6524	588	290	1,412 TWD
NS-01-27-AR	3000	27	60	0	20	20/49,5	9	1.1	M4	6524	588	290	1,861 TWD

所選零件的更多資訊：

三維CAD

樣品索取

PDF

報價請求

我的目錄

For unbored rails please indicate "Unbored" in the remark.

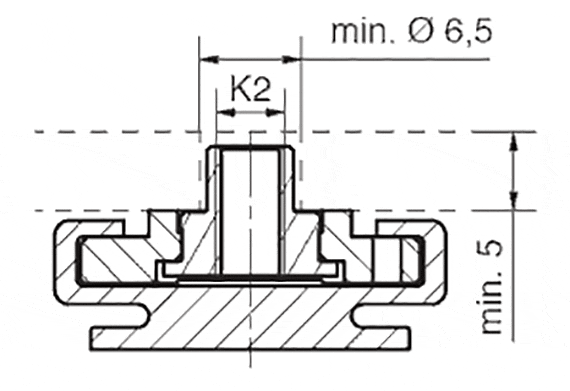

* for cylinder screw with low head

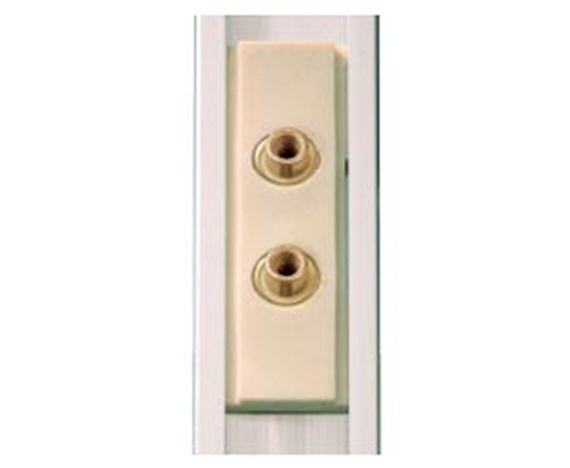

Version 22: Solid polymer carriage with threaded hole

Order no.	Weight of carriage
	[g]
NW-22-27-60-P	12	348 TWD

所選零件的更多資訊：

三維CAD

樣品索取

PDF

報價請求

我的目錄

Ordering of a complete system

Configuration in few steps:

1. Selection of the number of carriages
2. Selection of the type of carriage
3. Entry of the rail length in mm
4. Selection of the carriage options
5. Selection of the rails options.

Note:

Detailed information can be found above in the drawings and tables, as well as in the below mentioned pages. You can obtain precise specifications on the floating bearing options within the design rules.
